Gallery - Vessels (Selected Samples):
PV's, Storage Tanks & Heaters design calc's to national & international codes

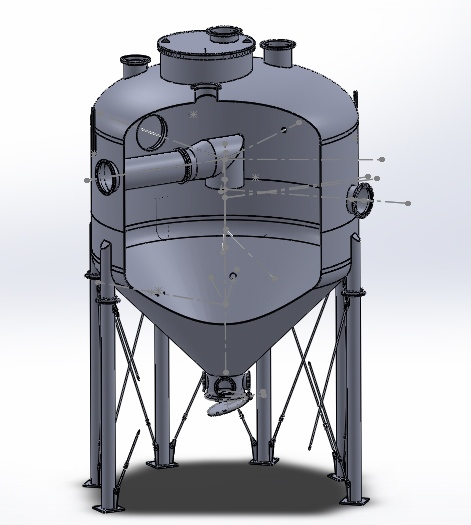

Aughinish Refinery Blow Off Tank: 8.8m dia.x16m high

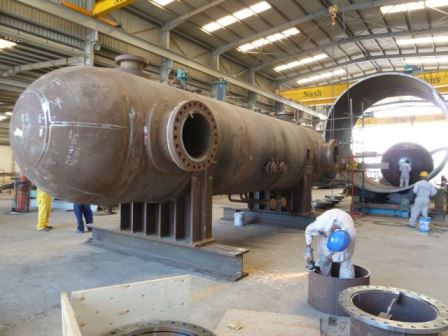

Akofs Project - Production Separator (2.0 od x 9.5 m long, 100barg)

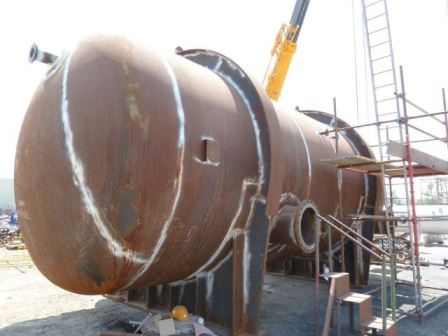

Akofs Project - HC Storage Vessel

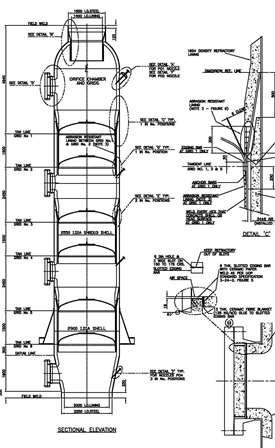

KStovo Refinery (Russia) - Orifice Chamber (2.9m dia x 16.6m Lg x 343degC)

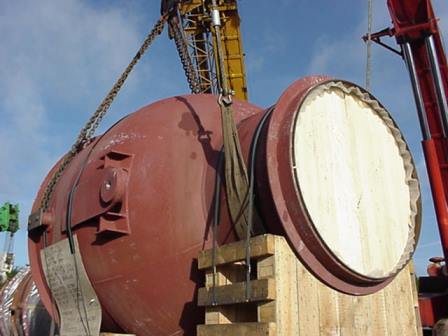

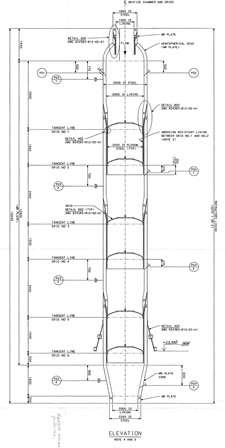

Mozyr  Refinery (Russia) - Orifice Chamber (3.2m dia x 17.8m Lg x 343degC)

Top chamber section

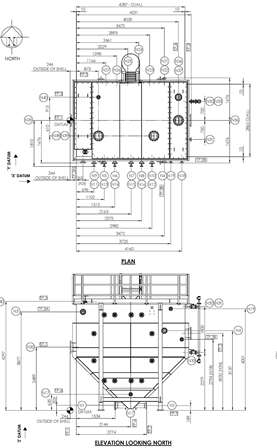

Rectangular Tanks:



Piping Structures Vessels FEA
